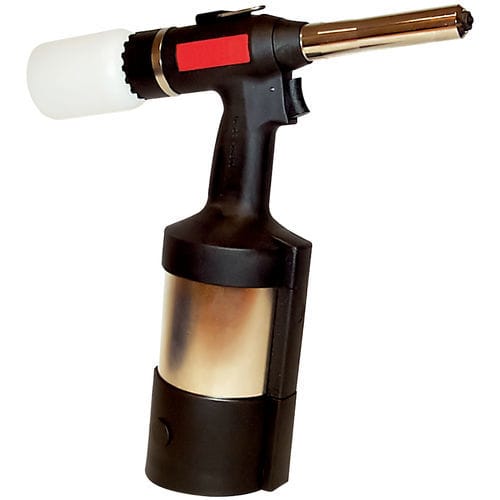

Pneumatic riveting tool EH 22880. series

Pneumatic riveting tool - EH 22880. series - HALDER France
Pneumatic riveting tool - EH 22880. series - HALDER France
Pneumatic riveting tool - EH 22880. series - HALDER France - image - 2
Pneumatic riveting tool - EH 22880. series - HALDER France - image - 3
Pneumatic riveting tool - EH 22880. series - HALDER France - image - 4
Add to favorites
Compare this product


Characteristics

Operation
pneumatic

Description

Assembly tool for the safe and easy assembly of Expander® sealing plugs with pull-anchor / elongated pull-anchor. Technical details of the pneumatic assembly tools: working pressure: min. 5 bar / max. 7 bar air volume required at 5.6 bar = 3.5 l. working noise <75 db(A) cycles 2 s. Attention: The scope of delivery of the original equipment of both, mechanical and pneumatical, assembly tools includes the ram, the clamping jaws and the clamping jaws' housing. Mechanical assembly tool: nozzles are also included in the supply volume. Pneumatic assembly tool: nozzles have to be purchased separately.
