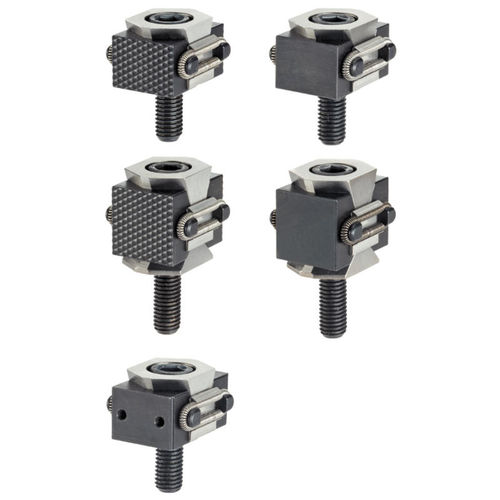

Clamping jaw EH 23250. series

Taper clamping units are particularly suitable for horizontal and vertical multiple clampings. The taper clamps are compact in build and therefore enable clamping without geometric interference. Material Body Tool steel, hardened, bright Screw Heat-treated steel, tempered, quality 12.9 Spring Spring steel wire NBR (O-Ring) Clamping jaws Tool steel, hardened, blackened and ground Assembly Can be mounted in a threaded hole or with T-nuts for horizontal or vertical multiple clamping. Operation Inserting the socket head screw moves the two clamping chucks outwards and presses the workpieces against a stop. Using the double taper, an additional vertical clamping force will be achieved. Stroke of taper clamping units with M 5 = ±0,5, M 8 = ±0,5, M 12 = ±1 and M 16 = ±1,5. Can be mounted in a threaded hole or with T-nuts for horizontal or vertical multiple clamping. References For further taper clamping units, refer to section "Multiple Clamping Systems" Accessories T-nuts EH 23010. have to be purchased separately. Further products Nuts for T-Slots DIN 508 Coverings for taper clamping units Taper Clamping Units plain / ribbed, M8 Taper Clamping Units plain / ribbed, M12 Taper Clamping Units with screw fastened thread, M12
