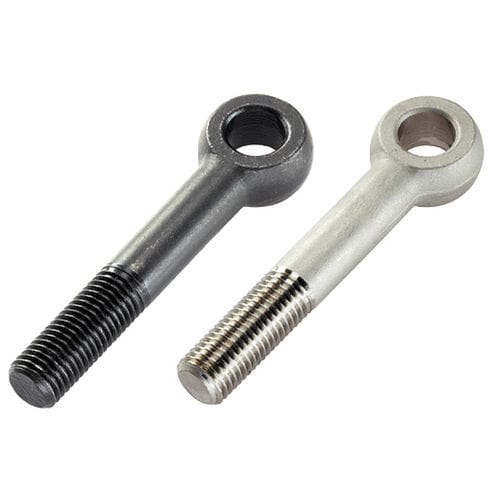

Steel screw with eye EH 22980. series

Steel screw with eye - EH 22980. series - HALDER France
Steel screw with eye - EH 22980. series - HALDER France
Steel screw with eye - EH 22980. series - HALDER France - image - 2
Steel screw with eye - EH 22980. series - HALDER France - image - 3
Steel screw with eye - EH 22980. series - HALDER France - image - 4
Add to favorites
Compare this product


Characteristics

Materials
steel
Diameter

Min.: 5 mm
(0.197 in)

Max.: 24 mm
(0.945 in)

Length

Min.: 25 mm
(0.98 in)

Max.: 200 mm
(7.87 in)

Description

Swing bolts similar to DIN 444 however, steel design with higher quality 8.8. The stainless steel A2-50 design has a tensile strength of min. 500 N/mm2. Material Heat-treated steel, tempered, quality 8.8, black Stainless steel 1.4301
