Steel headless screw EH 22700 series
stainless steelclampingthrust

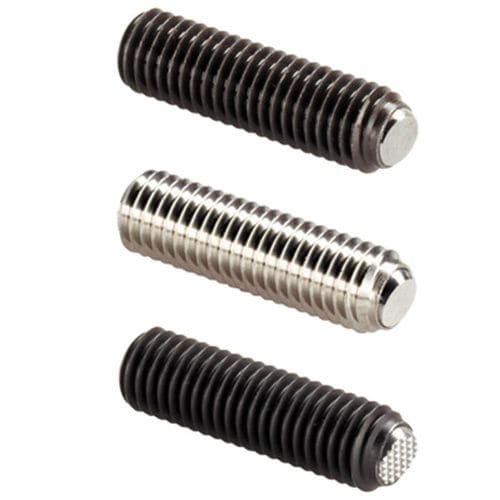

Steel headless screw - EH 22700 series - HALDER France - stainless steel / clamping / thrust
Steel headless screw - EH 22700 series - HALDER France - stainless steel / clamping / thrust
Steel headless screw - EH 22700 series - HALDER France - stainless steel / clamping / thrust - image - 2
Steel headless screw - EH 22700 series - HALDER France - stainless steel / clamping / thrust - image - 3
Steel headless screw - EH 22700 series - HALDER France - stainless steel / clamping / thrust - image - 4
Steel headless screw - EH 22700 series - HALDER France - stainless steel / clamping / thrust - image - 5
Add to favorites
Compare this product


Characteristics

Materials
steel, stainless steel
Other characteristics
clamping, thrust
Diameter

Min.: 6 mm
(0.236 in)

Max.: 20 mm
(0.787 in)

Length

Min.: 12 mm
(0.47 in)

Max.: 60 mm
(2.36 in)

Description

Ball-ended thrust screws can also be used for clamping, tightening or supporting of non-parallel surfaces. The flat-faced, movable ball enables a flat load transmission. Material Ball Ball-bearing steel, hardened Stainless steel, hardened Screw Heat-treated steel, 1200 ±100 N/mm2 Stainless steel 1.4305 Notes Ball protected against rotating. Special types on request. References Thread lock on request, please refer to appendix - Technical Data -
