Wall anchor HCC

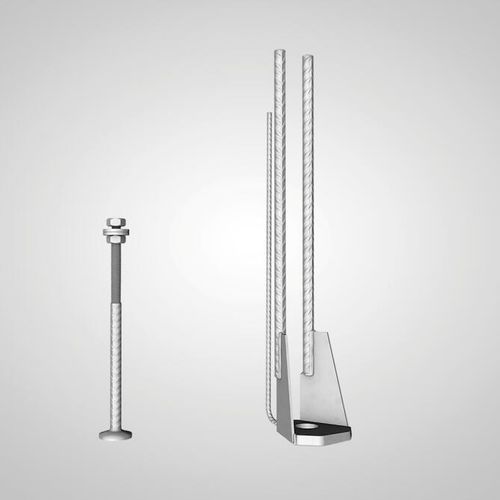

Using the latest, up-to-date products, precast reinforced concrete columns can now be erected much more economically. The HALFEN HCC Column shoes used in combination with HALFEN HAB Anchor bolts provide an efficient solution for connection of columns to foundations or for column to column connections. HALFEN HCC Column shoes HALFEN Column shoes are used to create rigid column connections in high-stress building components. The rigid connection is equally functional during and after final installation. The occurring loads are transferred through the HALFEN HAB H Anchor bolts (headed bolts) or the HAB S (rod anchor) into the foundation base. The large range of product types covering a wide load range enable most installation situations to be realized. HALFEN HAB Anchor bolts HALFEN HAB H Anchor bolts are made of B500B reinforcement steel with a rolled thread. A forged head on one end (head stud anchor) is used as the anchorage. Due to their low installation height, HAB H Anchor bolts are particularly suitable as anchorage in components with minimal thickness; i.e. in foundations or walls with enough edge spacing. HALFEN HAB S rod anchors, however, are more suitable for thicker components which have adequate anchorage depth. In this case the edge distances can be reduced. The benefits of using the bolt connection with precast system is the quick erection. The connection is easy to adjust and can be subjected to load immediately and therefore requires no bracing. The system consists of the HCC Column shoe and the corresponding HAB Anchor bolt for connecting to the foundation.
