35 W, Spectral distribution : 185 nm to 2000 nm, Short gap
Specifications

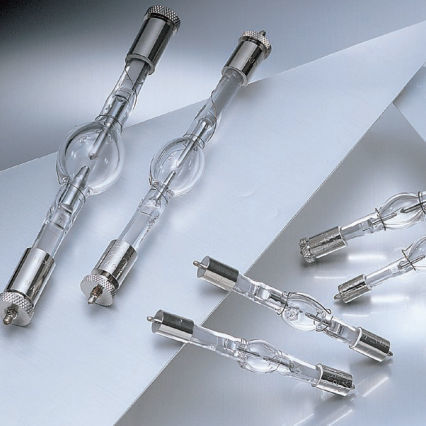

Product Name : Xenon Lamp
Lamp Rating : 35 W
Arc Length : 1 mm
Lamp Current : 3.5 +/- 0.2 A
Lamp Voltage : 11 V
Window Material : Low ozone fused silica
Spectral Distribution (Short) : 185 nm
Spectral Distribution (Long) : 2000 nm
Light Output Stability Drift Typ. : +/- 0.5 %/h
Light Output Stability Fluctuation (p-p) Max. : 1 %
Guaranteed Operation Life : 1000 h
Average Life : 2000 h
Orientation : Vertical +/-15 or Horizontal +/-15 degree
Cooling Method : Convection Cooling
Supply Voltage Min. : 50 V dc
Trigger Voltage : 15 kV
Weight : 14 g
