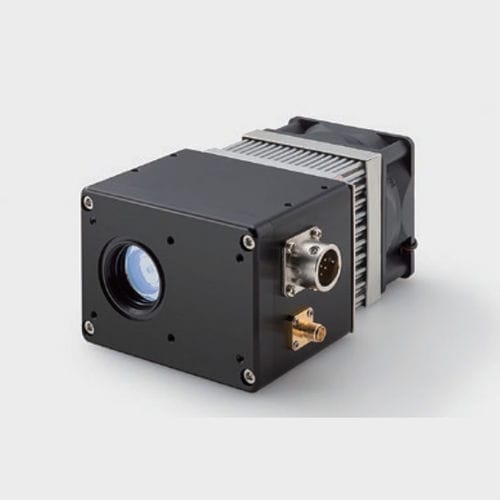

Rectangular photoelectric sensor H15620 series

infraredcompact

The H15620 series is NIR-PMT module using a compact NIR-PMT(near infrared photomultiplier tube) developed by our advanced photocathode technology. Specifications • Photocathode Area Shape : Round • Photocathode Area Size : Φ1.6 mm • Wavelength (Short) : 950 nm • Wavelength (Long) : 1200 nm • Wavelength (Peak) : 1100 nm • Dimension (W x H x D) : 80 mm x 60 mm x 126 mm • Input Voltage : +4.5 to +5.5 V • Max. Input Voltage : +5.5 V • Max. Input Current : +100 mA • Max. Output Signal Current : 1 µA • Max. Control Voltage : +0.9 V • Recommended Control Voltage Adjustment Range : +0.5 to +0.8 V • [Cathode] Radiant Sensitivity Typ. : 18 mA/W • [Anode] Radiant Sensitivity Typ. : 1.8 x 104 A/W • [Anode] Dark Current Typ. : 1.3 nA (PMT temperature -30 ℃) • [Anode] Dark Current Max. : 13 nA (PMT temperature -30 ℃) • [Time Response] Rise Time Typ. : 0.9 ns • Ripple Noise (peak to peak) Max. : 0.6 mV • Settling Time Max. : 0.2 s • Operating Ambient Temperature : +5 to +35 ℃ • Storage Temperature : -20 to +50 ℃ • Weight : 720 g
