Lamp light source 1544 series

excimer laserUVcompact

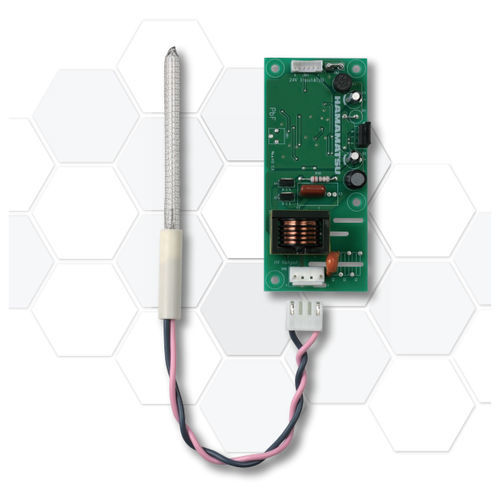

This is the world's smallest class excimer lamp designed for easy assembly into equipment. Its compact size and light weight allow a free and flexible design to achieve equipment downsizing and higher performance. This excimer lamp is an eco-friendly product since it uses absolutely no mercury, which is designated as an environmentally harmful substance. • Tube material : Quartz glass : - • Peak wavelength : 172 : nm • UV irradiance (*1) : Typ. : 7 (*2) : mW/cm2 • Light output stability : Drift : Typ. : 5 : %/h • Guaranteed life (*3) : 2000 (*2) : h • Cooling method : Not required : - • Operating temperature range : +5 ℃ to +35 ℃ : - • Storage temperature range : -5 ℃ to +55 ℃ : - • Operating humidity range : 30 % to 80 % (no condensation) : - • Storage humidity range : Below 80 % (no condensation) : -
