Laser alignment system L-742 Dual Scan®

rollhigh-accuracygeometric

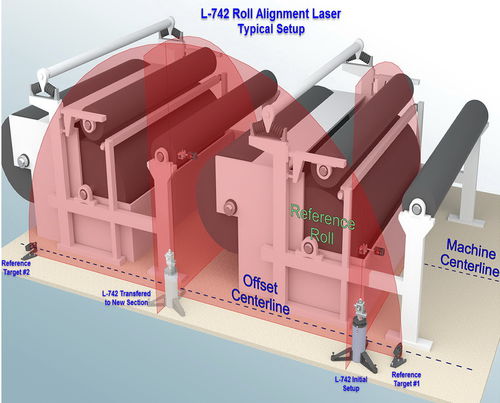

Designed primarily for roll alignment and other similar applications, the L-742 Dual Scan® Laser System offers the fastest and most accurate laser alignment system for any roll alignment application. Dual Scan® Technology Increases Parallelism Accuracy Our unique Laser Transfer Method eliminates pentaprism squareness errors in competing systems, giving you unsurpassed measurement repeatability and ensuring the most accurate parallelism measurement possible. Measuring More Rolls in Less Time By using automatically rotating laser planes and multiple wireless target, the L-742 is able to measure many rolls from the same setup at the same time, reducing labor costs. Unsurpassed Accuracy One of the critical components of any laser system is the straightness or flatness of the laser beam or plane, as this is the reference from which the measurements are made. The L-742 features the flattest laser plane in the world. Its continuously rotating laser plane is flat to .00003"/ft or 0.0025 mm/m. Our A-1519-2.4ZB offers 33 mm PSD and 0.0005 mm resolution.
