Laser alignment system L-733

rollhigh-accuracygeometric

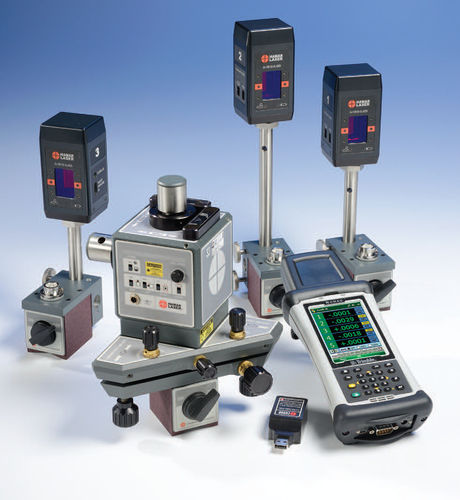

We designed the L-733 Precision Triple Scan® Laser to bring the innovative power of our high-end machine tool geometry lasers to lower accuracy applications like water jet and laser cutting machines, steel and textile mill roll alignments and large fabrication alignment. It has all of the timesaving and useful features of the L-743, with a few minor exceptions: lower accuracy, lower price and a medium adjustment base. Usually Only Requires One Setup Like the L-743, the L-733 offers 3 automatically rotating laser planes that not only MEASURE but it also FIX alignment errors in a fraction of the time needed with conventional methods. In most cases, it can align a machining center with only one setup. High Accuracy at 30% Lower Price With a price that is 30% lower, the L-733 is an affordable alternative to our high-accuracy machine tool alignment lasers. It features 2 vertical and 1 horizotal continuously rotating laser planes, a pitch, roll and yaw (medium) adjustment base, for setting the laser planes parallel to reference points, 2-arc-second level vials and a powerful magnet for maximum stability.
