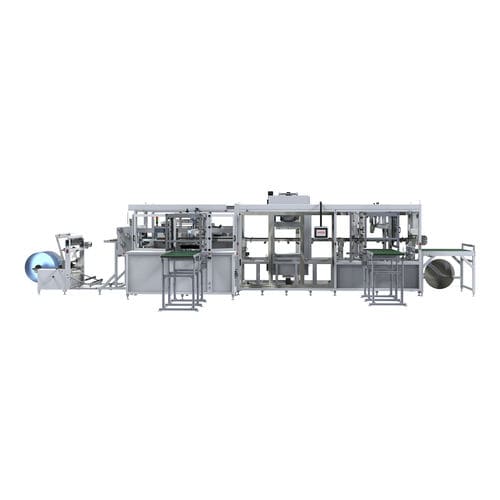

Vacuum laminating machine LH76

Fully automatic laminating machine for fiber trays and other products. Features • Roll fed process by compostable and other films • Servo driven film transport • Automatic adjustment for film width • In-feed conveyor for preformed pulp trays • Servo-assisted laminating station • Adjustable ceramic heater divided by zones with PID control • Accurate control of film heating process • Quick and flexible tool change-over system • Trimming process by cutting knives • Stacking process upwards • Sturdy and accessible frame • Easy and simple maintenance jobs • User friendly, colour touch screen interface • On-line checking by VPN • Data Logging feature • Possibility to add trays feeding and control systems Operation LH76 laminating machine integrates all operations, picking preformed fiber trays from a conveyor, laminating by vacuum through film roll, individual product trimming and stacking of the final product. Process concept to obtain waterproof and sealable preformed fiber trays or other products. More technical info Dimensions approx. (H x W x D) 2.650 mm x 5.910 mm x 11.590 mm Estimated weight 7.500 kg Forming film roll diameter (max.) 800 mm Roll core diameter 76 mm Laminating film thickness (max.) 200 microns Laminating film thickness (min.) 30 microns Laminating film width (max.) 820 mm Laminating film width (min.) 560 mm Vacuum forming area (max.) 710 x 600 mm Forming depth (max.) 100 mm Vacuum pump Flow 190 m3/h Heating power 28 kW Forming tables driven by Servomotors Trimming tables driven by Servomotors Trimming power 60 Tn Stacking driven by Servomotors Dry cycle output 10 cycles/minute Total installed power 60 kW Air consumption (at dry/cycle) 25 m3/h
