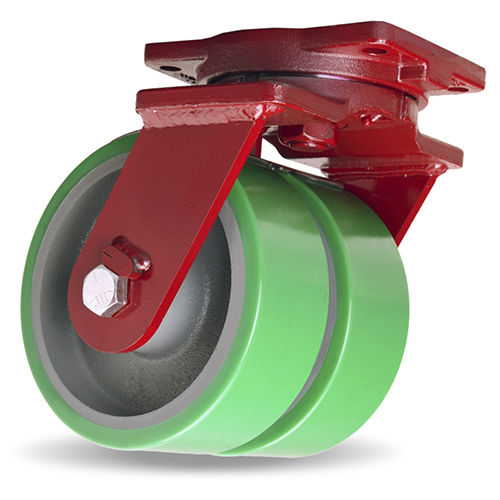

Swivel caster EHD2 series

base platesteel

Extra Heavy Duty Dual Wheel Casters Dual wheel casters address the problem of how to minimize overall height and maximize load capacity on resilient tread wheels. Dual wheel casters also improve stability and swivel more easily than wider-face single wheels because differential action reduces the "scrubbing" effect of soft treads against the floors. These forged steel dual wheel casters are built on the proven and reliable Extra Heavy Duty (EHD) swivel caster platforms. This means you have lots of flexibility if you need to match an existing bolthole pattern or overall height dimension. For dual wheel casters with even higher load capacities, see the MDD Series. Quality Features & Specs Swivel Construction All models have forged steel mounting plate and horn base with integrally forged kingpins and precision tapered thrust bearings. Precision laser cut legs are 3/8" thick. Kingpin 1" integrally forged with mounting plate, guaranteed for life. Main Load Bearing Large diameter raceway CNC-machined for HPI™ Swivel Technology. Optional Accessories Secondary Load Bearing Precision tapered roller bearing capped with grease retainer. Product Finish Powder Coated - Caster rigs are powder coated with Hamilton’s new Crimson Powder, a metallic HAA Polyester providing a premium look and excellent durability for both interior and exterior environments. Axle bolt and nut type: 3/4" grade 5 Lubrication Fittings Ball-check type in swivel assembly and in wheel hubs with tapered or straight roller bearings.
