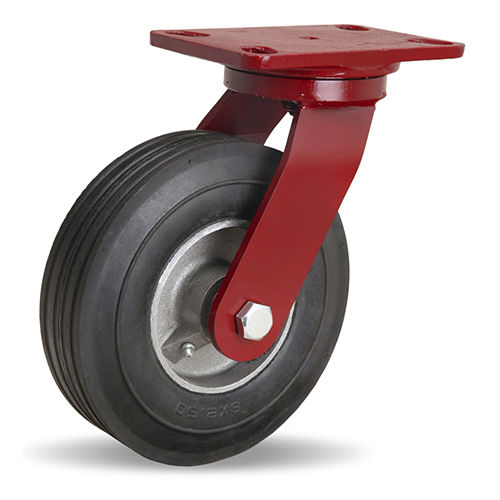

Swivel caster 8000 series

base platesoliddouble

Cush-N-Flex Casters Cush-N-Flex Casters feature the extra-soft (60 durometer), solid rubber Super-Flex wheels. They resemble pneumatics in appearance, but being puncture proof eliminate any risk of flats.- The extra-thick rubber tires are permanently vulcanized to cast aluminum hubs fitted with straight roller bearings to withstand rigorous industrial service. You can choose either a caster having a precision thrust bearing with an integrally forged kingpin, or the more economical double ball race, rivet-kingpin model. Specify Series 8000 Casters for use over very rough surfaces like steel grating, door sills, etc., or to provide greater cushioning than is achievable with other wheel types. Quality Features & Specs Swivel Construction Models S-8008-SU, S-8010-SU, & S-8012-SU: drop forged steel mounting plate and horn base, precision laser cut steel legs welded inside and outside, main load ball race with precision tapered thrust bearing around guaranteed for life integrally forged kingpin. A premium design suitable for power towing. Other models: Cold forged steel mounting plate and horn base, double ball race, formed and welded legs, and 5/8" diameter king-pin (3/4" on 10" & 12" models). Choice of two popular mounting plate and height dimensions on 6" and 8" models. Product Finish Powder Coated - Caster rigs are powder coated with Hamilton’s new Crimson Powder, a metallic HAA Polyester providing a premium look and excellent durability for both interior and exterior environments. Axle Bolt and nut type: 1/2" diameter on all models, except #S/R-8012-SU, #S/R-8410-SU, and #S/R-8412-SU which are 3/4" dia.
