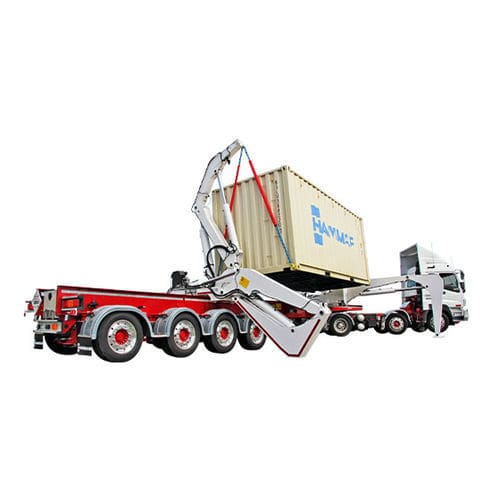

Truck-mounted side loader 110 series

electricride-onhandling

- Versatile double-action support legs - Transfer specialist, low tare weight - High efficiency, advanced lifting options - Low ground pressure & high stability - Trailer or truck mounted Why the Hammar 110 Sideloader? The Hammar 110 is the result of the latest technology and innovation. It has two key features: a uniquely versatile double-action support leg and a low tare weight. It is also available with more advanced lifting options, such as top spreaders, extendable cranes and high cube stacking. The most common telescopic chassis is the C-chassis (Combination). It combines sliding cranes with a telescopic chassis, and has a low tare weight. The sliding cranes enable optimized weight distribution of your load. A telescopic chassis is a requirement in some countries for transporting 45' or longer containers on the road. The A-chassis (Advanced) is a unique chassis from Hammar and, as the name suggests, the most advanced. It is made of three moving chassis parts and has sliding cranes. This makes it possible to optimise the weight distribution for both 2 and 3-axle trucks, as well as for different container sizes. It is also possible to make it shorter than a C-chassis in its shortest position (20’). The T-chassis (Trombone) is the simplest telescopic chassis. The chassis extends and retracts between 20’-40’ modes and has fixed cranes. The T-chassis can be built to the shortest length, providing a high level of manoeuvrability when transporting 20’ containers.
