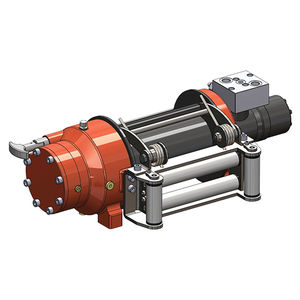

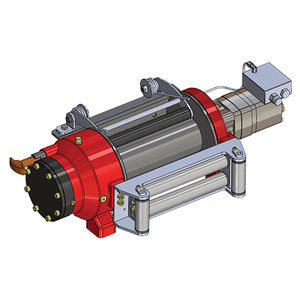

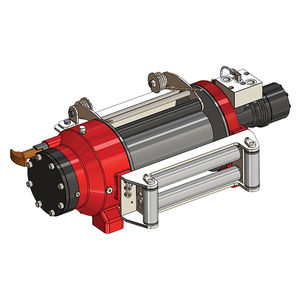

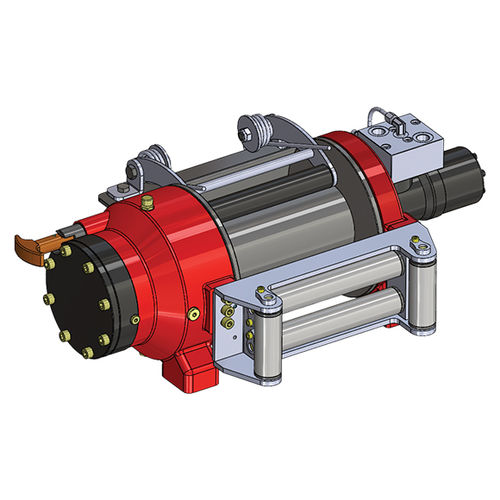

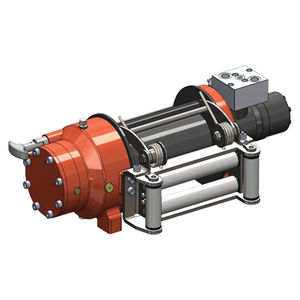

Hydraulic winch HMW 5.6 PHT - ENpullingfor vehiclesgear
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Type
- wire rope
- Application
- pulling
- Products applications
- for vehicles
- Other characteristics
- gear, with brake
- Capacity
3,278 kg, 3,657 kg, 4,136 kg, 4,758 kg, 5,600 kg
(7,226.8 lb, 8,062.3 lb, 9,118.3 lb, 10,489.6 lb, 12,345.9 lb)- Speed
10,000 mm/min, 12,000 mm/min, 14,000 mm/min, 15,000 mm/min, 17,000 mm/min
(6.6 in/s, 7.9 in/s, 9.2 in/s, 9.8 in/s, 11.2 in/s)- Cable length
7.35 m, 15.7 m, 25.3 m, 36 m, 48.6 m
(24'01" , 51'06" , 83'00" , 118'01" , 159'05" )- Pressure
155 bar
(2,248.08 psi)- Flow
60 l/min
(15.85 us gal/min)- Weight
78.5 kg
(173.063 lb)
Description
• Extra reinforced aluminium cast body through the heat treatment and industrial design.
• Light and robust design.
• 100% Holding negative-acting hydraulic brake system.
• Standard pressure roller and roller fairlead.
• Easy assembly, high rope capacity and high torque hydromotor.
• Standard manual rope unloading system.
• EN 14492-1 : 2006 Power driven winches supported.
• CE Machinery Directive 2006/42/EC
