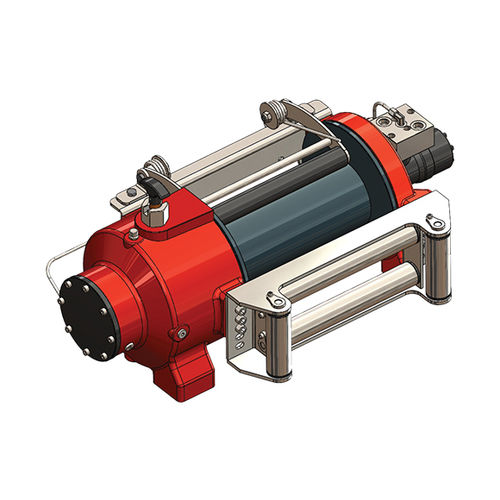

Hydraulic winch HMW 10.0 PHT - ENpullingfor vehiclesgear
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Type
- wire rope
- Application
- pulling
- Products applications
- for vehicles
- Other characteristics
- gear, with brake, horizontal
- Capacity
6,779 kg, 7,594 kg, 8,632 kg, 10,000 kg
(14,945.1 lb, 16,741.9 lb, 19,030.3 lb, 22,046.2 lb)- Speed
7,000 mm/min, 8,000 mm/min, 9,000 mm/min, 10,000 mm/min
(4.6 in/s, 5.2 in/s, 5.9 in/s, 6.6 in/s)- Cable length
12 m, 25.4 m, 41.2 m, 58.3 m
(39'04" , 83'03" , 135'02" , 191'03" )- Pressure
175 bar
(2,538.16 psi)- Flow
60 l/min
(15.85 us gal/min)- Weight
197 kg
(434.311 lb)
Description
• Extra reinforced steel cast body.
• Lightweight and strong design, high rope capacity.
• Negative-acting hydraulic brake holding reinforced.
• Dynamics, strong hydraulic motor and high strength cast drum.
• EN 14492-1 : 2006 Power driven winches supported.
• CE Machinery Directive 2006/42/EC
