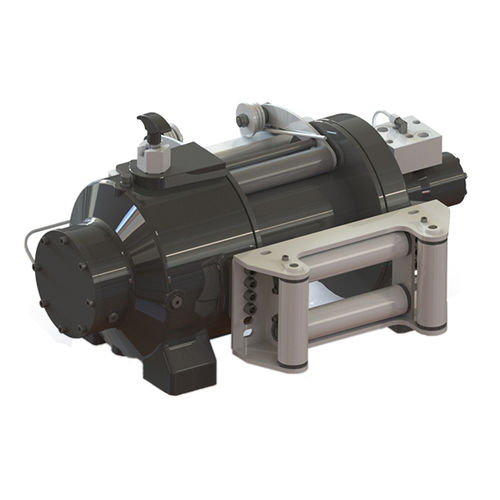

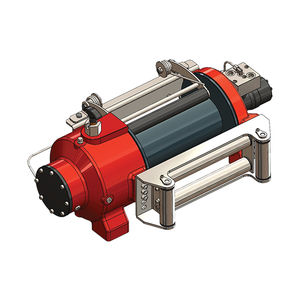

Hydraulic winch HMW 10.0 PHT - Kpullingfor vehiclesgear
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Type
- wire rope
- Application
- pulling
- Products applications
- for vehicles
- Other characteristics
- compact, gear, with brake
- Capacity
6,542 kg, 7,394 kg, 8,502 kg, 10,000 kg
(14,422.6 lb, 16,301 lb, 18,743.7 lb, 22,046.2 lb)- Speed
6,300 mm/min, 7,400 mm/min, 8,500 mm/min, 9,600 mm/min
(4.1 in/s, 4.9 in/s, 5.6 in/s, 6.3 in/s)- Cable length
6.3 m, 13.8 m, 22.7 m, 33 m
(20'08" , 45'03" , 74'05" , 108'03" )- Pressure
145 bar
(2,103.05 psi)- Flow
60 l/min
(15.85 us gal/min)- Weight
159 kg
(350.535 lb)
Description
• Extra reinforced steel cast body.
• Lightweight and strong design.
• 100% Holding negative-acting hydraulic brake system.
• Standard pressure roller and roller fairlead.
• Easy assembly, high rope capacity and high torque hydromotor
• Standard manual rope unloading system
• CE Machinery Directive 2006/42/EC
• Meets SAE J706 rating
