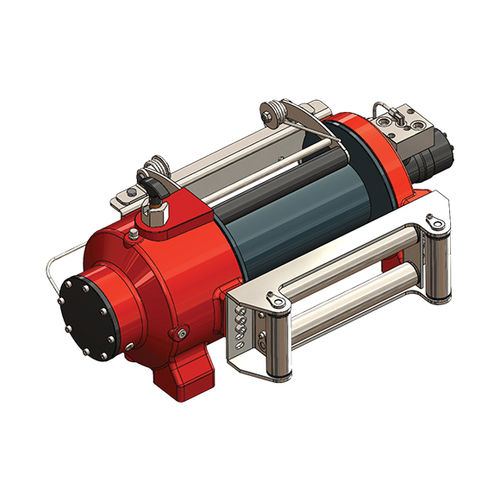

Hydraulic winch HMW 12.0 PHTpullingfor vehiclesgear
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Type
- wire rope
- Application
- pulling
- Products applications
- for vehicles
- Other characteristics
- gear
- Capacity
7,852 kg, 8,874 kg, 10,203 kg, 12,000 kg
(17,310.7 lb, 19,563.8 lb, 22,493.8 lb, 26,455.5 lb)- Speed
5,000 mm/min, 6,800 mm/min, 7,700 mm/min, 8,900 mm/min
(3.3 in/s, 4.5 in/s, 5.1 in/s, 5.8 in/s)- Cable length
10.2 m, 21.9 m, 35.8 m, 51.3 m
(33'05" , 71'10" , 117'05" , 168'03" )- Pressure
135 bar
(1,958.01 psi)- Flow
60 l/min
(15.85 us gal/min)- Weight
185 kg
(407.855 lb)
Description
• Extra reinforced steel cast body.
• Lightweight and strong design.
• 100% Holding negative-acting hydraulic brake system.
• Standard pressure roller and roller fairlead.
• Easy assembly, high rope capacity and high torque hydromotor
• Standard manual rope unloading system
• CE Machinery Directive 2006/42/EC
• Meets SAE J706 rating
Catalogs
12.0 PHT/CE - K
1 Pages
