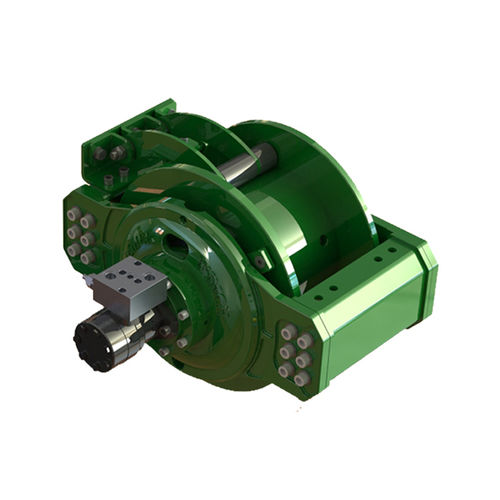

Hydraulic winch HMW 12.0 SDW
pullinggearwith brake

hydraulic winch
hydraulic winch
hydraulic winch
hydraulic winch
Add to favorites
Compare this product


Characteristics

Operation
hydraulic
Type
wire rope
Application
pulling
Other characteristics
gear, with brake
Capacity

8,607 kg, 9,262 kg, 10,025 kg, 10,925 kg, 12,000 kg
(18,975.2 lb, 20,419.2 lb, 22,101.3 lb, 24,085.5 lb, 26,455.5 lb)

Speed

7,100 mm/min, 7,800 mm/min, 8,500 mm/min, 9,200 mm/min, 9,900 mm/min
(4.7 in/s, 5.1 in/s, 5.6 in/s, 6 in/s, 6.5 in/s)

Cable length

10.8 m, 21.6 m, 34.6 m, 47.4 m, 62 m
(35'05" , 70'10" , 113'06" , 155'06" , 203'04" )

Pressure

200 bar
(2,900.75 psi)

Flow

60 l/min
(15.85 us gal/min)

Weight

199 kg
(438.72 lb)

Description

• Extra reinforced steel cast body. • Lightweight and strong design, high rope capacity. • Negative-acting hydraulic brake holding reinforced. • Dynamics, strong hydraulic motor and high strength cast drum. • EN 14492-1 : 2006 Power driven winches supported. • CE Machinery Directive 2006/42/EC
