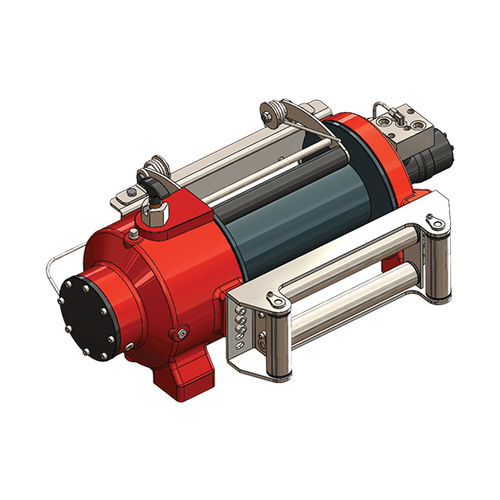

Hydraulic winch HMW 15.0 PHTpullingfor vehiclesgear
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Type
- wire rope
- Application
- pulling
- Products applications
- for vehicles
- Other characteristics
- gear, with brake
- Capacity
9,459 kg, 10,787 kg, 12,550 kg, 15,000 kg
(20,853.5 lb, 23,781.3 lb, 27,668 lb, 33,069.3 lb)- Speed
4,000 mm/min, 4,900 mm/min, 5,700 mm/min, 6,400 mm/min
(2.6 in/s, 3.2 in/s, 3.7 in/s, 4.2 in/s)- Cable length
9 m, 19.7 m, 32.5 m, 47.3 m
(29'06" , 64'07" , 106'07" , 155'02" )- Pressure
155 bar
(2,248.08 psi)- Flow
60 l/min
(15.85 us gal/min)- Weight
187 kg
(412.264 lb)
Description
• Extra reinforced steel cast body.
• Lightweight and strong design.
• 100% Holding negative-acting hydraulic brake system.
• Standard pressure roller and roller fairlead.
• Easy assembly, high rope capacity and high torque hydromotor
• Standard manual rope unloading system
• CE Machinery Directive 2006/42/EC
• Meets SAE J706 rating
