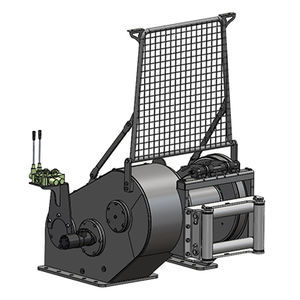

Hydraulic winch HMW 20.0 PHT - ENfor heavy loadspullingfor vehicles
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Type
- wire rope
- Application
- for heavy loads, pulling
- Products applications
- for vehicles
- Other characteristics
- planetary gear, with brake
- Capacity
Min.: 10,702 kg
(23,593.9 lb)Max.: 20,000 kg
(44,092.5 lb)- Speed
Min.: 5,000 mm/min
(3.3 in/s)Max.: 10,000 mm/min
(6.6 in/s)- Cable length
Min.: 9.4 m
(30'10" )Max.: 77.4 m
(253'11" )- Pressure
200 bar
(2,900.75 psi)- Flow
75 l/min
(19.81 us gal/min)- Weight
345 kg
(760.595 lb)
Description
• Extra reinforced steel cast body through the heat treatment and industrial design
• Light and robust design
• 100% Holding negative-acting hydraulic brake system.
• Standard pneumatic rope unloading system.
• Easy assembly, high rope capacity and high torque hydromotor.
• Two-stage planetary gear system.
• EN 14492-1 : 2006 Power driven winches supported
• CE Machinery Directive 2006/42/EC
