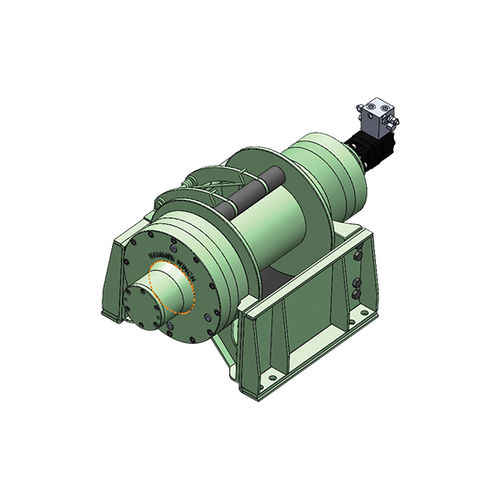

Hydraulic winch HMW 30.0 PHT - ENfor heavy loadspullingfor vehicles
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Type
- wire rope
- Application
- for heavy loads, pulling
- Products applications
- for vehicles
- Other characteristics
- compact, planetary gear, with brake
- Capacity
20,443 kg, 22,872 kg, 25,956 kg, 30,000 kg
(45,069.1 lb, 50,424.1 lb, 57,223.2 lb, 66,138.7 lb)- Speed
3,600 mm/min, 4,100 mm/min, 4,700 mm/min, 5,300 mm/min
(2.4 in/s, 2.7 in/s, 3.1 in/s, 3.5 in/s)- Cable length
13.2 m, 27.6 m, 45.4 m, 64.9 m
(43'03" , 90'06" , 148'11" , 212'11" )- Pressure
190 bar
(2,755.72 psi)- Flow
75 l/min
(19.81 us gal/min)- Weight
585 kg
(1,289.704 lb)
Description
• Extra reinforced steel cast body through the heat treatment and industrial design.
• Light and robust design.
• 100% Holding negative-acting hydraulic brake system.
• Standard pneumatic rope unloading system.
• Easy assembly, compact design and high torque hydromotor.
• Three-stage planetary gear system.
• EN 14492-1 : 2006 Power driven winches supported
• CE Machinery Directive 2006/42/EC
