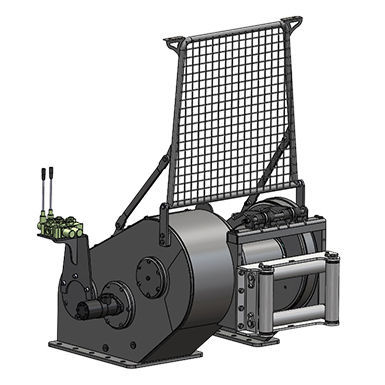

Hydraulic winch HMW 30.0 THT
for heavy loadspullingfor vehicles

Hydraulic winch - HMW 30.0 THT  - Hammer Winch - for heavy loads / pulling / for vehicles
Hydraulic winch - HMW 30.0 THT  - Hammer Winch - for heavy loads / pulling / for vehicles
Hydraulic winch - HMW 30.0 THT  - Hammer Winch - for heavy loads / pulling / for vehicles - image - 2
Hydraulic winch - HMW 30.0 THT  - Hammer Winch - for heavy loads / pulling / for vehicles - image - 3
Hydraulic winch - HMW 30.0 THT  - Hammer Winch - for heavy loads / pulling / for vehicles - image - 4
Add to favorites
Compare this product


Characteristics

Operation
hydraulic
Type
wire rope
Application
for heavy loads, pulling
Products applications
for vehicles
Other characteristics
gear, with brake
Capacity

Max.: 30,000 kg
(66,138.7 lb)

Min.: 14,926 kg
(32,906.2 lb)

Speed

Max.: 3,400 mm/min
(2.2 in/s)

Min.: 1,700 mm/min
(1.1 in/s)

Cable length

Max.: 80 m
(262'05" )

Min.: 9.3 m
(30'06" )

Pressure

170 bar
(2,465.64 psi)

Flow

60 l/min
(15.85 us gal/min)

Weight

738.3 kg
(1,627.673 lb)

Description

• Extra reinforced steel cast body. • Lightweight and strong design. • 100% Holding negative-acting hydraulic brake system. • Standard pressure roller and roller fairlead. • Easy assembly, high rope capacity and high torque hydromotor. • Standard manual rope unloading system. • CE Machinery Directive 2006/42/EC • Meets SAE J706 rating
