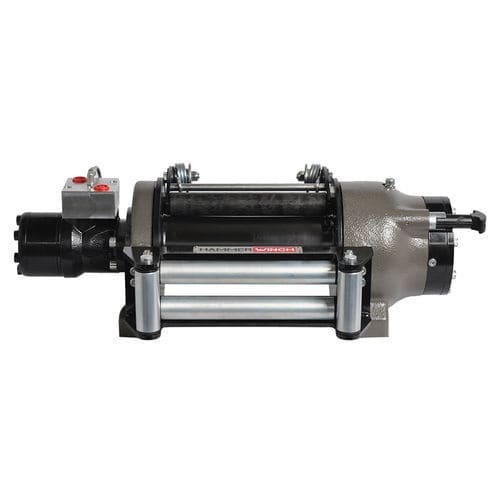

Hydraulic winch HMW 5.8 PHT - STpullingfor vehicleswith brake
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Type
- wire rope
- Application
- pulling
- Products applications
- for vehicles
- Other characteristics
- with brake
- Capacity
3,395 kg, 3,788 kg, 4,283 kg, 4,927 kg, 5,800 kg
(7,484.7 lb, 8,351.1 lb, 9,442.4 lb, 10,862.2 lb, 12,786.8 lb)- Speed
10,000 mm/min, 12,000 mm/min, 14,000 mm/min, 16,000 mm/min, 17,000 mm/min
(6.6 in/s, 7.9 in/s, 9.2 in/s, 10.5 in/s, 11.2 in/s)- Cable length
7.35 m, 15.7 m, 25.3 m, 36 m, 48.6 m
(24'01" , 51'06" , 83'00" , 118'01" , 159'05" )- Pressure
160 bar
(2,320.6 psi)- Flow
60 l/min
(15.85 us gal/min)- Weight
90 kg
(198.416 lb)
Description
• Extra reinforced steel cast body through the heat treatment and industrial design
• Light and robust design
• 100% Holding negative-acting hydraulic brake system.
• Standard pressure roller and roller fairlead.
• Easy assembly, high rope capacity and high torque hydromotor
• Standard manual rope unloading system
• CE Machinery Directive 2006/42/EC
• Meets SAE J706 rating
