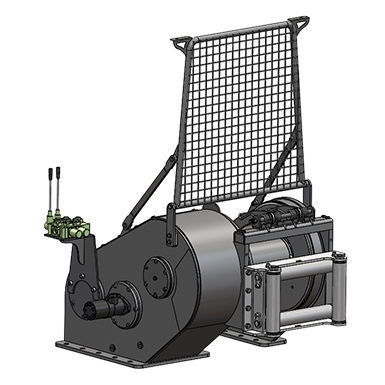

Hydraulic winch HMW 50.0 THTfor heavy loadspullinggear
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Type
- wire rope
- Application
- for heavy loads, pulling
- Other characteristics
- gear, with brake
- Capacity
Min.: 24,077 kg
(53,080.7 lb)Max.: 50,000 kg
(110,231.1 lb)- Speed
Min.: 2,000 mm/min
(1.3 in/s)Max.: 4,100 mm/min
(2.7 in/s)- Cable length
Min.: 8.6 m
(28'02" )Max.: 75 m
(246'00" )- Pressure
210 bar
(3,045.79 psi)- Flow
75 l/min
(19.81 us gal/min)- Weight
755.8 kg
(1,666.254 lb)
Description
• Extra reinforced steel cast body.
• Lightweight and strong design.
• 100% Holding negative-acting hydraulic brake system.
• Standard pressure roller and roller fairlead.
• Easy assembly, high rope capacity and high torque hydromotor.
• Standard manual rope unloading system.
• CE Machinery Directive 2006/42/EC
• Meets SAE J706 rating
Catalogs
HMW 50.0 THT
1 Pages
