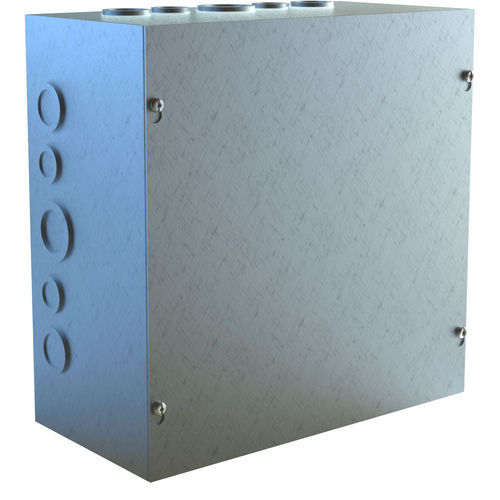

Wall-mounted junction box CSKOG SeriesIECNEMAIP20
Add to favorites
Compare this product
Characteristics
- Mounting
- wall-mounted
- Protection level
- IEC, NEMA, IP20
- Material
- steel, steel, galvanised steel
- Other characteristics
- indoor, with knockouts
- Width
6 mm, 8 mm, 10 mm, 12 mm, 16 mm
(0.24 in, 0.31 in, 0.39 in, 0.47 in, 0.63 in)- Depth
4 cm, 6 cm, 8 cm
(1.57 in, 2.36 in, 3.15 in)
Description
Designed for general purpose indoor commercial use as a junction, pull or switch box.
UL-50 Type 1
CSA Type 1
Complies with:
NEMA Type 1
IEC 60529, IP20
Formed and spot welded from 16 gauge G90 steel.
Flat steel covers fastened with plated steel screws.
Keyhole slots permit cover to be lifted off without removing screws entirely.
Easily removed knockouts on all 4 sides (see drawings for sizes and locations).
Through holes in back for wall mounting.
Grounding location embossed in body.
Enclosure and cover are unpainted galvanized steel.
