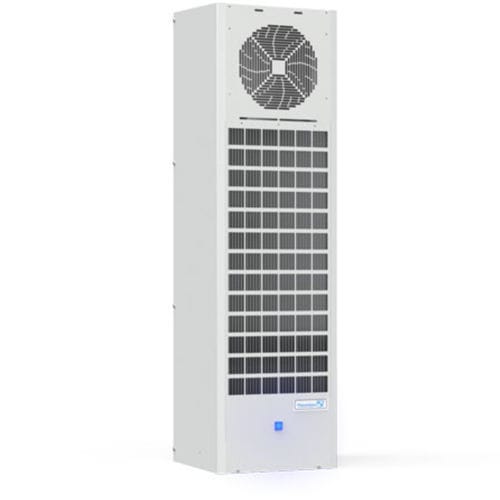

Side-mount air conditioner DTS3 Series
compactair-cooled

side-mount air conditioner
side-mount air conditioner
side-mount air conditioner
Add to favorites
Compare this product


Characteristics

Configuration
side-mount
Type
compact
Other characteristics
air-cooled
Cooling power

5,952 W, 6,103 W, 7,374 W, 7,475 W
(20,309.06 BTU/h, 20,824.29 BTU/h, 25,161.12 BTU/h, 25,505.75 BTU/h)

Height

57 in

Width

16 in

Depth

16 in

Description

Designed for side mounting on any enclosure surface where high capacity system cooling is required. Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air. Optimum air circulation with maximum clearance distance between warm inlet and cold outlet for reduced hot spot locations. Condensor with 3 mm fin spacing, highly effective protection against strongly contaminated and aggressive ambient air Maintains enclosure's NEMA 12 rating IP 54 UL, cUL and CE R134a refrigerant. Thermostat control accessible from inside enclosure. Hot gas bypass valve prevents evaporator freeze up while minimizing heavy inrush currents on large BTU/H units. Built in condensate evaporator. Continuous air circulation from high capacity fans. EMI/RFI suppression meets CE. Self-diagnostics on startup. Fault indication via LED light. Provision for door contact allowing power down when enclosure door is opened. Gasket, mounting kit and template for enclosure cutout and drilling are included. Condensate drain hose and clamp provided.
