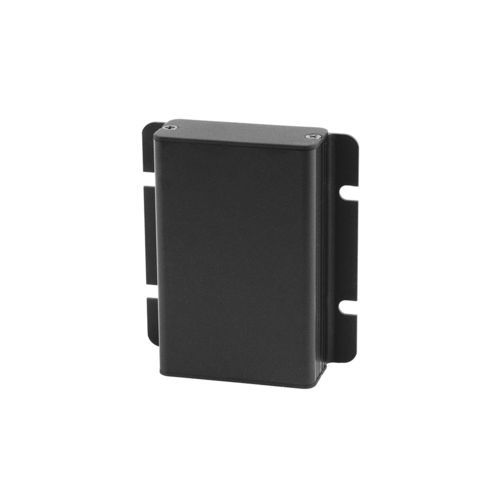

Wall-mount enclosure 1455F Series

panelflangerectangular

Designed to house P.C. boards or for equipment interfacing. Integrated slotted flanges allow for easy wall mounting. Flange provides a completely flat bottom surface and transitions seamlessly into the extrusion body for a finished look. P.C. boards mount into extrusions by sliding into internal slots extruded into the enclosure body. Rugged body constructed from extruded aluminum with a minimum thickness of .06” (1.5 mm). Extruded aluminum body - choice of clear or black anodized (2) Aluminum end panels Includes all hardware - end panel screws are zinc-plated #6 x 3/8” TTT thread rolling, steel screws with a #4 flat head phillips drive. Supplied screws are natural or black to match housing. Replacement end panels available in packs of 10 (see table below) For black replacement screws (quantity 100) order part number 1455MS100BK For clear replacement screws (quantity 100) order part number 1455MS100 NOTE: Recommended screw torque is 5 lbf-in
