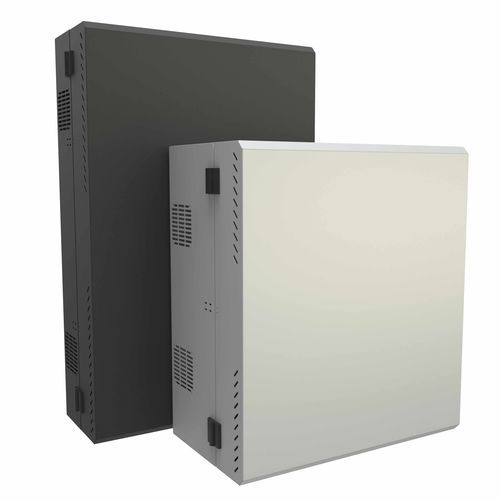

Wall-mount network cabinet HLP Series

low-profilelow

Available in two (2) heights up to 41 inches of usable space and three (3) fixed rack unit options. Each cabinet ships with one (1) pair of 2U 180-degree rotating mounting rack rails and one (1) pair of fixed rack rails. Fixed rack mounting units are available in 4U, 6U, and 8U. Fixed rails mount at five different angles, providing equipment mounting options. Includes starter pack of SCREW1032-25 screws. The locking hinged front door includes side venting for airflow. The door and latch can be reversed to swing left to right. The rear wall mounting section features 3.00”, 2.00”, 1.38”, and 1.12” conduit knockouts on top and bottom. Side venting is designed for optional fans for active cooling. Generous cable management lances are located on the rear section. Heavy-duty keyhole for wall mounting. Large knockouts in the rear for cable access. The body and rear section are constructed of 16-gauge steel. Rack rails are 14-gauge steel with 10-32 tapped EIA-compliant mounting rails. The body includes dedicated bonding points, providing the option of drill-less mounting of electrical 4x2 utility boxes. Grounding kit sold separately - GRDKIT01 or GRDKIT04. UL Listed 2416 load rated for up to 200 lbs (90 kg). Static Load tested to 800 lbs (362 kg). The body and door are finished in rugged sand-textured RAL 9005 black or textured RAL 7035 light gray powder paint. The rack rails are finished in smooth white powder paint. Complies with the Greenguard guidelines for indoor air quality. TAA-compliant for GSA Schedule purchases. RoHS Compliant. Manufactured in North America within an ISO 9001:2015 certified facility.
