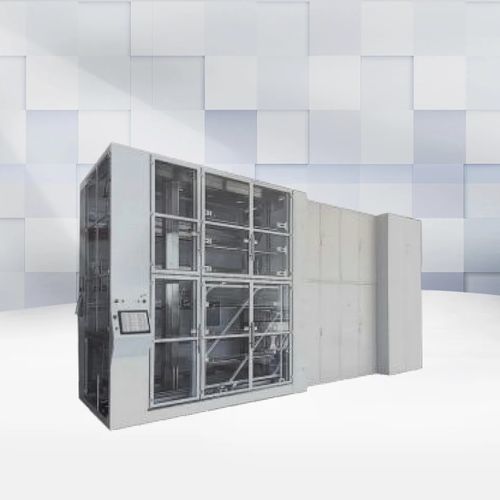

PECVD deposition machine FALO

thin-filmfor photovoltaic applications

It is suitable for the growth of dense alumina and other back passivation film materials in the process of high-efficiency crystalline silicon perc battery. Continuous switching between various films; Support the boat pushing mechanism at both ends to eliminate jitter, improve speed, increase load and greatly improve reliability (patent). The time of entering and leaving the boat shall not be more than 20 seconds (excluding taking and releasing the boat); Special shaped double furnace door mechanism to reduce heat loss (patented double furnace door structure); Graphite boat electrode technology: electric electrode surface contact, front and rear electrodes are supplemented, and the tail electrode is adjustable outside the furnace tube; Rapid cooling furnace body: the latest patented technology is adopted, so that the furnace body temperature can be quickly reduced to the required temperature, and the cooling rate can be increased by more than 25%, significantly improving the temperature uniformity in the furnace tube; Patented parallel heat dissipation mode of boat storage position: improve the cooling effect, shorten the cooling time by more than 15%, avoid the bottom and air inlet from the front of the console to improve the internal cleanliness of the console; Quartz tube auxiliary hoisting tool, which greatly reduces the difficulty of installation, maintenance and replacement of quartz tube; The compactness of the film is higher than that of indirect plasma; It has better passivation effect than ALD.
