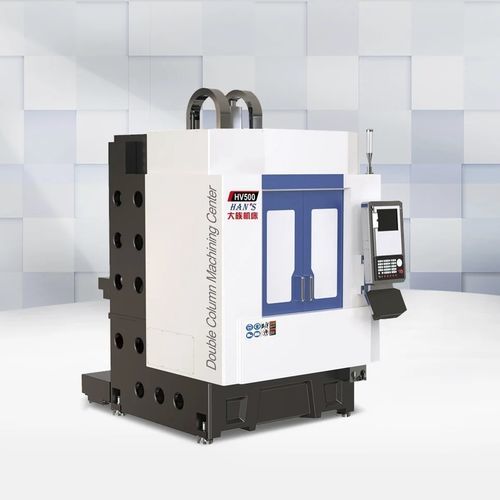

3-axis CNC machining center HV500verticalwith fixed portalBBT30
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- with fixed portal
- Spindle mount
- BBT30
- Associated functions
- cutting, tapping
- Other characteristics
- high-speed, direct-drive, high-rigidity
- X travel
500 mm
(19.69 in)- Y travel
450 mm
(17.72 in)- Z travel
330 mm
(12.99 in)- Rotational speed
24,000 rpm
(150,796 rad.min-1)- Power
2.2 kW, 3.7 kW
(2.99 hp, 5.03 hp)- Table load capacity
250 kg
(551 lb)- Tool weight (max)
3 kg
(6.6 lb)- Positioning accuracy
0.005 mm
(0.0002 in)- Repeatability
0.003 mm
(0.00012 in)- Tool-changing time
Min.: 1.1 s
Max.: 1.7 s
- Weight
3,400 kg
(7,495.72 lb)- Overall length
1,550 mm
(61 in)- Overall width
2,250 mm
(88.6 in)- Overall height
2,550 mm
(100.4 in)
Description
Portal small-sized high speed machining center with overall high rigid cutting capacity
Strong BBT30 direct driven spindle, high efficiency tapping, rotation speed 24000rpm
48 min fast moving and cutting speed, shorten processing time
1. Mitsubishi M80 system is standardly installed, the processing ability of tiny line segments
can quickly process large ladder programs
2. The thin computer unit improves the design freedom of the control board
3. High productivity and PLC processing capacity, ease of use, automation supported
4. Siemens 828D/FANUC System is optional
5. LOT expansion, intelligent monitoring and enriched mainstream protocols
