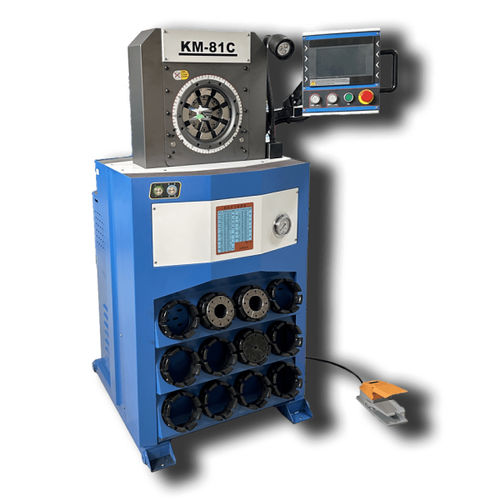

Hydraulic hose crimping machine KM-81Cfor elbow fittingsautomatichydraulic
Add to favorites
Compare this product
Characteristics
- Product handled
- hydraulic hose, for elbow fittings
- Operational mode
- automatic
- Drive type
- hydraulic
- Other characteristics
- PLC-controlled, high-capacity, vertical
- Crimping force
Max.: 500 kN
500 kN
Min.: 0 kN
- Crimping capacity
Max.: 87 mm
(3.4 in)50.8 mm
Min.: 4 mm
(0.2 in)- Power
4 kW
(5.44 hp)- Voltage
Max.: 440 V
380 V
Min.: 110 V
- Noise level
Max.: 75 dB
69 dB
Min.: 0 dB
Description
- Improved computer system, have more perfect function.
- Suitable for quick change tool.
- With stronger crimping force, Suitable for batch crimping of 6-layer hose.
- The die sets shelf can be taken apart.
Technical data
Crimping range 1/8”-2”
Standard voltage and motor 380V/4kW
Opening without dies Φ155mm
Opening ≥60mm
Weight 760Kg
No. of standard die 12 sets
Systematic pressure 30MPa
VIDEO
