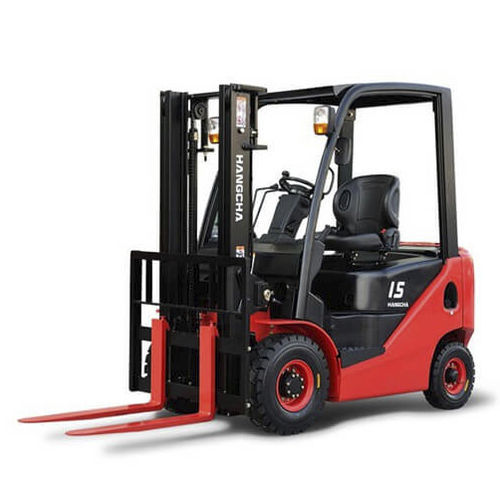

Diesel forklift XF series
gasride-on4-wheel

Diesel forklift - XF series - HANGCHA FRANCE - gas / ride-on / 4-wheel
Diesel forklift - XF series - HANGCHA FRANCE - gas / ride-on / 4-wheel
Diesel forklift - XF series - HANGCHA FRANCE - gas / ride-on / 4-wheel - image - 2
Diesel forklift - XF series - HANGCHA FRANCE - gas / ride-on / 4-wheel - image - 3
Diesel forklift - XF series - HANGCHA FRANCE - gas / ride-on / 4-wheel - image - 4
Diesel forklift - XF series - HANGCHA FRANCE - gas / ride-on / 4-wheel - image - 5
Diesel forklift - XF series - HANGCHA FRANCE - gas / ride-on / 4-wheel - image - 6
Add to favorites
Compare this product


Characteristics

Motor type
diesel, gas
Operator
ride-on
Other characteristics
4-wheel
Carrying capacity

Min.: 1,500 kg
(3,306.9 lb)

Max.: 1,800 kg
(3,968.3 lb)

Lifting height

Min.: 3,000 mm
(118.11 in)

Max.: 6,500 mm
(255.91 in)

Overall width

1,080 mm
(42.5 in)

Load center distance

500 mm
(19.7 in)

Weight without load

2,650 kg, 2,760 kg
(5,842.2 lb, 6,084.8 lb)

Ground clearance under mast with load

115 mm
(4.5 in)

Ground clearance at center of wheelbase with load

140 mm
(5.5 in)

Turning circle radius

1,990 mm, 2,015 mm
(78.3 in, 79.3 in)

Travel speed

19 km/h, 20 km/h
(11.8 mph, 12.4 mph)

Lifting speed

0.5 m/s, 0.7 m/s
(1.64 ft/s, 2.297 ft/s)

Lowering speed

0.5 m/s
(1.64 ft/s)

Rated drawbar pull

16,800 N, 19,000 N

Gradeability

34 %, 37 %

Rated output

37.4 kW, 38.4 kW
(50.8 hp, 52.2 hp)

Rated speed

2,400 rpm, 2,700 rpm
(15,079.6 rad.min-1, 16,964.6 rad.min-1)

Cubic capacity

2,065 cm³, 2,615 cm³
(69.8 US fl oz, 88.4 US fl oz)

Maximum operating pressure

145 bar
(2,103 psi)
