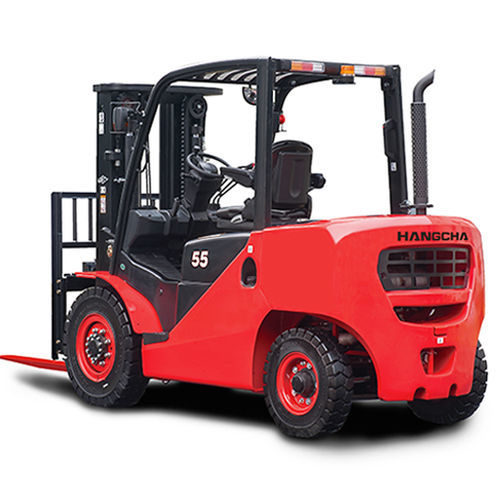

Diesel forklift XF series
gasride-on4-wheel

diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
Add to favorites
Compare this product


Characteristics

Motor type
diesel, gas
Operator
ride-on
Other characteristics
4-wheel
Carrying capacity

Max.: 5,500 kg
(12,125.4 lb)

Min.: 4,000 kg
(8,818.5 lb)

Lifting height

Max.: 7,000 mm
(275.59 in)

Min.: 3,000 mm
(118.11 in)

Overall width

1,420 mm, 1,503 mm
(55.9 in, 59.2 in)

Load center distance

500 mm
(19.7 in)

Weight without load

6,500 kg, 6,700 kg, 6,850 kg, 7,250 kg
(14,330 lb, 14,771 lb, 15,101.7 lb, 15,983.5 lb)

Ground clearance under mast with load

170 mm
(6.7 in)

Ground clearance at center of wheelbase with load

230 mm
(9.1 in)

Turning circle radius

2,690 mm, 2,720 mm, 2,875 mm, 2,905 mm
(105.9 in, 107.1 in, 113.2 in, 114.4 in)

Travel speed

24 km/h
(14.9 mph)

Lifting speed

0.4 m/s, 0.5 m/s
(1.312 ft/s, 1.64 ft/s)

Lowering speed

0.5 m/s
(1.64 ft/s)

Rated drawbar pull

38,500 N, 38,600 N

Gradeability

23 %, 25 %, 28 %, 30 %

Rated output

54.6 kW, 55.8 kW, 61.6 kW
(74.2 hp, 75.9 hp, 83.8 hp)

Rated speed

2,200 rpm, 2,300 rpm
(13,823 rad.min-1, 14,451.3 rad.min-1)

Cubic capacity

2,970 cm³, 3,331 cm³, 3,769 cm³
(100.4 US fl oz, 112.6 US fl oz, 127.4 US fl oz)

Maximum operating pressure

190 bar
(2,755.7 psi)
