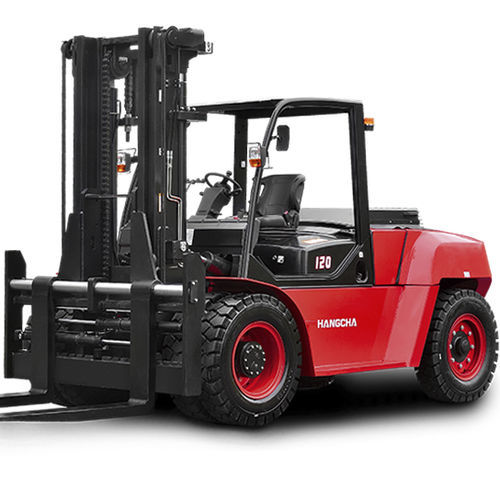

Diesel forklift XF series
gasride-on4-wheel

diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
diesel forklift
Add to favorites
Compare this product


Characteristics

Motor type
diesel, gas
Operator
ride-on
Other characteristics
4-wheel
Carrying capacity

8,000 kg, 10,000 kg, 12,000 kg
(17,637 lb, 22,046.2 lb, 26,455.5 lb)

Lifting height

Max.: 7,000 mm
(275.59 in)

Min.: 3,000 mm
(118.11 in)

Overall width

2,165 mm
(85.2 in)

Load center distance

600 mm
(23.6 in)

Axle loading with maximum load rear

2,020 kg, 2,285 kg, 2,300 kg
(4,453.3 lb, 5,037.6 lb, 5,070.6 lb)

Ground clearance under mast with load

250 mm
(9.8 in)

Ground clearance at center of wheelbase with load

339 mm
(13.3 in)

Turning circle radius

3,730 mm, 3,940 mm, 4,040 mm
(146.9 in, 155.1 in, 159.1 in)

Travel speed

28.5 km/h, 29 km/h
(17.7 mph, 18 mph)

Lifting speed

0.3 m/s, 0.4 m/s
(0.984 ft/s, 1.312 ft/s)

Lowering speed

0.5 m/s
(1.64 ft/s)

Gradeability

20 %

Rated output

85 kW, 95 kW
(115.6 hp, 129.2 hp)

Rated speed

2,000 rpm
(12,566.4 rad.min-1)

Maximum operating pressure

195 bar, 215 bar
(2,828.2 psi, 3,118.3 psi)
