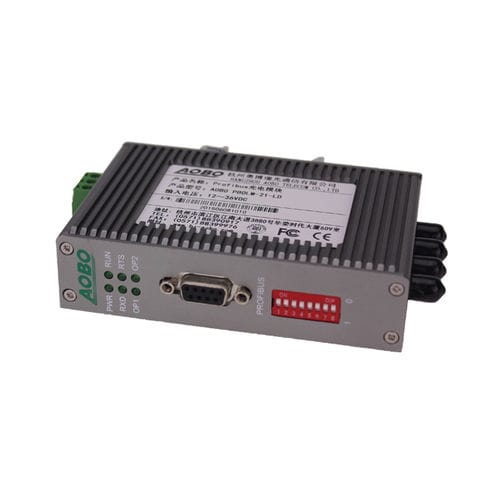

Signal converter AOBO PBOLM series

powertemperaturehigh-frequency

Industrial Profibus optical-electric module converts the Profibus signal into the fibre optic signal for the long-distance transmission. The optical-electric conversion module permits prolonging the transmission distance of the serial port by 5km at most (multimode fiber) This series of the modules also allow the selection of ABpass® outage light path protective module and support the equipment function of the automatic optical bypass under the circumstance of the power outage. Support the fiber-optic redundancy self-healing loop technology, with the self-healing time less than 10ms. AOBO PBOLM series provide the Profibus system with 2.5KV optoelectronic isolation protection, redundant power source input and similar functions to ensure that the Profibus equipment is operated uninterruptedly. √ Support the optical fiber redundancy self-healing loop technology √ Allow the selection of the ABPass® light path protective module √ Employ the flexible networking methods: point-to-point, chain network, star network and loop network √ Wide range of working temperature: -40℃~85℃ √ The maximum transmission rate may reach 12Mbps √ Support a maximum of 2 fiber interfaces and 1 Profibus interface √ Adopt the flexible networking method to form the point-to-point, chain, star and ring topology structure networking √ Support the fiber-optic self-healing loop technology, with the self-healing time less than 10ms √ Allow the selection of ABpass® outage light path protective module and further improve the reliability of the industrial communication network √ The maximum transmission rate may reach 12Mbps √ Fully compatible with Profibus-DP bus cable interface
