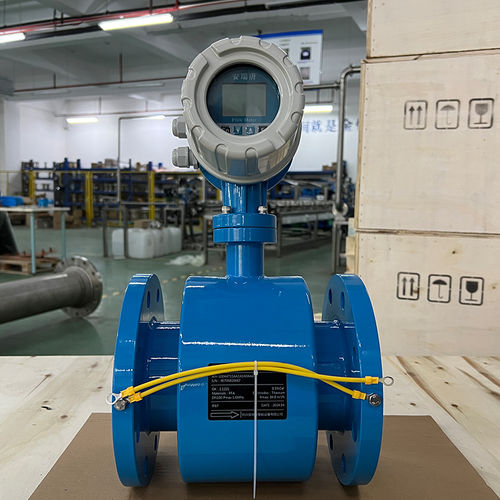

Electromagnetic flowmeter
magneticvolumefor liquids

Electromagnetic flowmeter - Hangzhou ARTang Intelligent Equipment Co., Ltd - magnetic / volume / for liquids
Electromagnetic flowmeter - Hangzhou ARTang Intelligent Equipment Co., Ltd - magnetic / volume / for liquids
Electromagnetic flowmeter - Hangzhou ARTang Intelligent Equipment Co., Ltd - magnetic / volume / for liquids - image - 2
Electromagnetic flowmeter - Hangzhou ARTang Intelligent Equipment Co., Ltd - magnetic / volume / for liquids - image - 3
Electromagnetic flowmeter - Hangzhou ARTang Intelligent Equipment Co., Ltd - magnetic / volume / for liquids - image - 4
Add to favorites
Compare this product


Characteristics

Technology
electromagnetic, magnetic
Type
volume
Fluid
for liquids
Pipe diameter
DN15 - 1/2", DN25 - 1", DN10 - 3/8", DN8 - 1/4", DN90 - 3"1/2, DN50 - 2", DN80 - 3", DN1200 - 48", DN40 - 1"1/2, DN100 - 4", DN65 - 2"1/2, DN175 - 7", DN6 - 1/8", DN275 - 11", DN250 - 10", DN300 - 12", DN200 - 8", DN20 - 3/4", DN32 - 1"1/4, DN225 - 9", DN150 - 6", DN4, DN125 - 5", DN60 - 2"1/4
Installation
flange
Material
stainless steel, PTFE
Communication
4-20 mA, RS485, with pulse output, HART, PROFIBUS
Supply voltage
36 VDC
Protection level
IP68, IP65
Applications
industrial
Other characteristics
compact, digital, high-accuracy, with battery
Process temperature

Max.: 80 °C
(176 °F)

Min.: -45 °C
(-49 °F)

Precision

0.2 %, 0.5 %

Description

Electro magnetic flow meters are suitable for flow measurement of various conductive liquids, such as water, acids, alkalis, solutions, pasty materials and so on. Electromagnetic flow meter is more widely applicable, because it is not affected by the temperature, pressure and density of the fluid and other parameters. 1. High accuracy: the accuracy of magnetic flow meter can reach 0.2%. 2. Wide measurement range: electromagnetic flow meter can measure the flow of various fluids, applicable to a variety of industrial fluid flow measurement. 3. strong anti-interference: electromagnetic flow meter can resist external electromagnetic interference and vibration interference, etc., so it can be used in a variety of harsh environments to ensure the accuracy of the measurement. 4. Long service life: electromagnetic flow meter has a long service life, generally can be used for 5-10 years. 5. Small size: electromagnetic flowmeter is small in size, easy to install and move. 6. Can be used in corresponding explosion-proof occasions.
