AC motor
three-phaseasynchronous400 V

AC motor - HANGZHOU CHINABASE MACHINERY CO., LTD. - three-phase / asynchronous / 400 V
AC motor - HANGZHOU CHINABASE MACHINERY CO., LTD. - three-phase / asynchronous / 400 V
AC motor - HANGZHOU CHINABASE MACHINERY CO., LTD. - three-phase / asynchronous / 400 V - image - 2
Add to favorites
Compare this product


Characteristics

AC/DC
AC, three-phase
Type
asynchronous
Voltage
400 V, 380 V
Protection class
IP54, IP55
Configuration
aluminum-frame
Power

3 kW, 4 kW
(4.079 hp, 5.438 hp)

Description

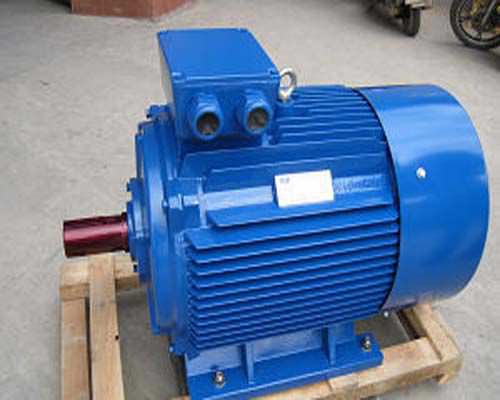

The Y2, manufactured by Chinabase Machinery (Hangzhou), is an aluminum-frame three-phase asynchronous electric motor. This device offers an IP 54 and IP55 level of protection and a class F insulation. Its efficiency conforms with the EFF2 European standard. It is used as a drive mechanism in different machinery like compressors, pumps, machining equipment, agricultural systems, transportation systems as well as food processing systems. This device operates on ambient temperatures ranging from -15°C up to 40°C in an altitude up to 1,000 meters. It runs on voltages 380 V, 400 V and 415 V and on rated frequencies 50 Hz or 60 Hz. It utilizes a star-connection for motors 3KW and lower output power Delta-connection for motors 4KW and up output power The cooling method it uses is IC411.
