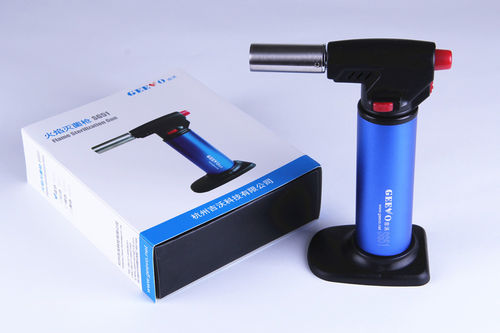

Flame sterilizer SG series

laboratoryhandheldfor the pharmaceutical industry

Smart flame sterilization tool for lab microbial test. Fast and safe. It has self-protect function. Feature a. Auto extinguish fire function: Release the trigger when burning, fire will be extinguish atumatically. That will avoid the danger when misoperation. b. Durative burning: Positioning lock can keep it burning for long time. c. Double Protection design: Use pull lock and trigger meanwhile can avoid Ignition by mistake, keep it safe. d. Adjustable flame length: Adjust it according the demand, the length of flame is from 20mm to 65mm. e. Refilling gas: When it is full, it can keep intermittent burning for 20- 40minutes(sterilize the filter head only takes 4-5seconds). SG51 Technical Parameter Weight: 240g Capacity: 18g (safe) Inner Pressure: 0.35±0.05MPa Durative burning time: 20-40minutes Max. flame temperature: 1200℃ The height of flame: Min.20mm, max.65mm(22℃) L x W x H: 130mm x 66mm x 165mm How to Refill A. Put upside down the flame gun and make the gas input valve up. B. Put the nozzle into gas valve, press it for some seconds. C. Away from fire when refilling. D. Attention: It can only be ignited when the liquid in the valve or hand have been volatilized out. Do not ignite when filling.
