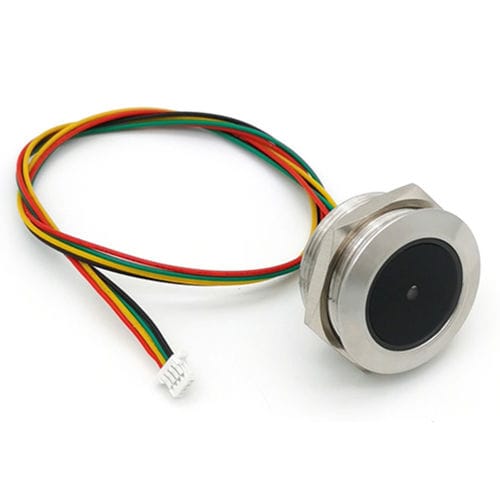

2D barcode scanner GM60

mobile1D

GROW GM60 1D 2D Barcode Scanner Classification Barcode Scanner Interface UART Voltage 3.3V Operating Current 70mA Resolution 5mil Specifications Decoding Ability: QR Code, Data Matrix, PDF417,EAN13,UPC,Code 39,Code 93,Code 128,UCC/EAN 128 Model GM60 Type Barcode Scanner Decoding Ability QR Code, Data Matrix, PDF417,EAN13,UPC,Code 39,Code 93,Code 128,UCC/EAN 128 Scan Mode 640*480 Interface UART Resolution 5mil Serial Baud Rate(UART) 57600 Operating Voltage 3.3V Operating Current 70mA Contrast ≥25% Weight 25g Size External Diameter 28mm Internal Diameter 25mm Height 15mm Thread M25 Scan Angle Roll 360°, Pitch 55°, Yaw 55° Viewing Angle 69°(Inclination), 56°(Elevation) Light Colorful indicator/green light flashing prompt reading success Operating Temperature -30 degrees to 70 degrees Storage Temperature -30 degrees to 85 degrees Temperature Humidity 5% to 95% Relative humidity, Non-condensing Files ·Provide User Manual
