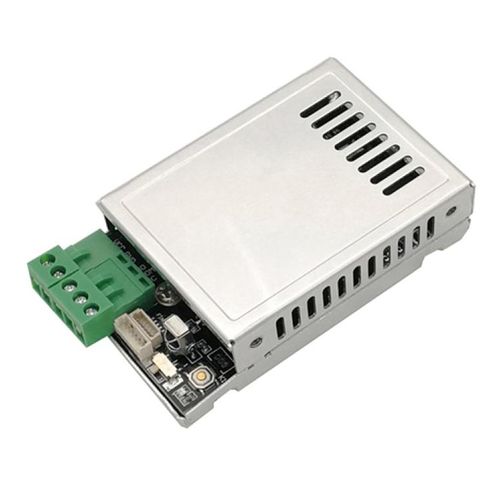

Circuit board K216

GROW K216 Fingerprint Control Board Classification Fingerprint Control Board Power Supply DC10V--30V Stand-by Mode Current 6mA（DC12V） Fingerprint Capacity 300 Output Relay（Max. current: 10A） Technical Parameters ·P1: Power supply：DC10V--30V ·P2: Output：Relay（Max. current: 10A） ·P3: MX 1.0-6P Fingerprint Module (can connect R502) ·P4: MX 1.25-6P Fingerprint Module (can connect R300,R301T,R302,R303,R303T,R305,R306,R307,R501) ·Standby current：6mA（DC12V） ·Fingerprint capacity：300 pieces Operation Instruction 1. SET Button: 1.1 Press SET button shortly,system in register state and indicator light flash fast, press two times for each fingerprint, fingerprint register successful when hearing music.Fingerprint can be registered continuously when system in register state; if no need adding fingerprint more, waiting 8 seconds.(Fingerprint capacity is 100 pieces when press SET button，the registered fingerprints are stored in database 01) 1.2 When back to factory default, press SET button until hear “Di” long beep and music,means initialization operation successful
