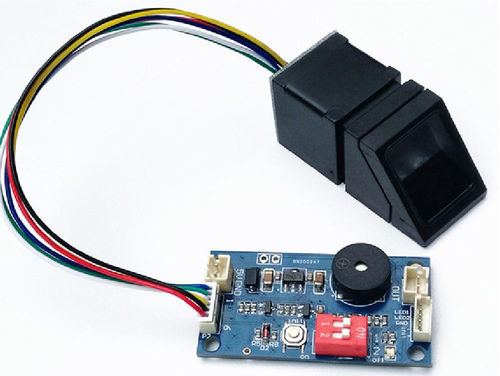

Fingerprint access control system K200+R307

K200 Technical Parameters ·Fingerprint capacity: 120 ·Power supply: 4*AA battery or DC5V ·Stand-by mode current: less than 7 uA ·Output: DC5--6V,500mA Operation Instruction 1.Press SET button shortly,system in administrator register status and blue indicator light flash fast, press two times for each fingerprint, fingerprint register successfully when hearing music.Fingerprint can be registered continuously,and it can register 20 pieces administrator fingerprint. If no need for adding fingerprint, waiting for 6seconds or press the SET button to exit. 2.When back to factory default, press SET button until hear “Di-Di-Di” beep and release the button,means initialization operation successful. 3.Register User Fingerprint: Press the administrator fingerprint until hear the music and blue indicator light flash fast, means can add user fingerprint.Press two times for each user fingerprint, fingerprint register successful when hearing music. Fingerprint can be registered continuously, it can register 100 pieces user fingerprint. 4.Delete User Fingerprint：Press the administrator fingerprint when hear the music and blue indicator light flash fast, move the finger until hear “DiDiDi” long deep, than all user fingerprints are deleted. 5.Mode selection,setby the toggle switch: a) 1:ON, 2:ON Output DC5V and keep 0.5 second; stop 5 seconds,then minusvoltage outputted and keep 0.5 seconds. b) 1:ON, 2:OFF Output DC5V and keep 1 second c) 1:OFF, 2:ON Output DC5V and keep 10 seconds d) 1:OFF, 2:OFF Keeping output DC5V until removing the finger
