EV charger electrical cable EV07E2Q-H
powerflame-retardantshielded

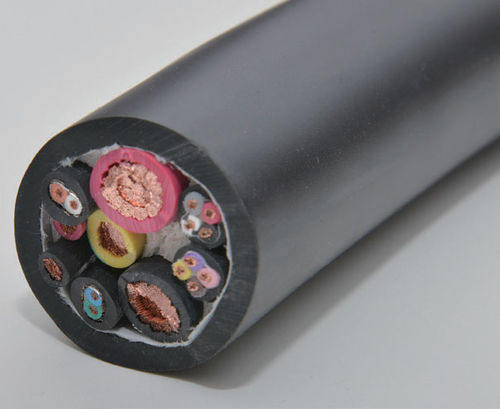

EV charger electrical cable - EV07E2Q-H - Hangzhou Jiayuan Industrial Co., Ltd. - power / flame-retardant / shielded
EV charger electrical cable - EV07E2Q-H - Hangzhou Jiayuan Industrial Co., Ltd. - power / flame-retardant / shielded
EV charger electrical cable - EV07E2Q-H - Hangzhou Jiayuan Industrial Co., Ltd. - power / flame-retardant / shielded - image - 2
Add to favorites
Compare this product


Characteristics

Type
power
Protection
flame-retardant, shielded
Configuration
stranded, round
Core material
copper
Applications
for EV charger
Material of the insulation
TPE-insulated, PVC-sheathed
Norms
IEC
Other characteristics
UL, braided copper
Nominal voltage

450 V, 750 V

Temperature

Min.: -40 °C
(-40 °F)

Max.: 105 °C
(221 °F)

Cross-section

Min.: 1 mm²
(0 in²)

Max.: 70 mm²
(0.11 in²)

Description

Application: Used for Electric Vehicle slow charging Structure: Conductor：Strands of fine twisted bare into bundles,TypeⅤ and Type Ⅳ conductors in compliance with IEC60228 Insulation:Special material with PVC or TPE Cores:wire stranding Inner jacket:special material with PVC or TPE Shielding:tinned braided copper,over 85%(optional) Outer jacket:Special PVC or TPE Color:black,orange or other customized colors Properties: Voltage:450V/750V Temperature:-40℃—+105℃ Flame retardant:IEC60332-2 Conductor cross-area(mm2) and number of cores: 1.0-70，double cores or more,customization available Customization available Reference Standard:TUV 2 PfG 1908
