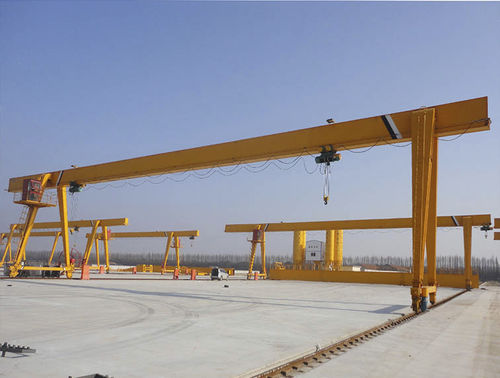

Rail-mounted gantry crane

lightweightsingle-girder

Single girder gantry crane is a common type gantry crane used indoor or outdoor, and it is also an ideal solution for light duty and medium duty material handling. NANTE can offer different type design of single girder gantry crane like box girder, truss girder, L shape girder, with low headroom hoist, standard room (monorail) hoist, to meet various applications with the features of compact design, light self-weight, low noisy, easy for installation and maintenance. Features 1） - Follows the international design code, like FEM, CMAA, EN ISO. 2） - Can equip with low headroom hoist or standard room hoist. 3） - The girder is compact, low self-weight, and welded by S355 material, the welding specification follows ISO 15614, AWS D14.1, deflection can from 1/700 ~ 1/1000, MT or PT is requested for Fillet welding and UT is requested for joint welding. 4） - The end carriage can be hollow shaft or open gear type design, the wheel is made by alloy steel with proper heat treatment. 5） - Branding gear motor with IP55, F insulation class, IE3 Energy 6） - efficiency, over-heat protection, manual release bar, and electro-magnetic brake feature. The motor is controlled by inverter for smooth running. 7） - The control panel design follow IEC standard, and is installed inside IP55 enclosure with socket for easy Installation. 8） - Double line Galvanized C track festoon system with flat cable, one line for hoist power and signal transmission, one line for the pendent control trolley movement. 9） - SA2.5 Surface pre-treated by blasting according to ISO8501-1; C3-C5 painting system according to ISO 12944-5
