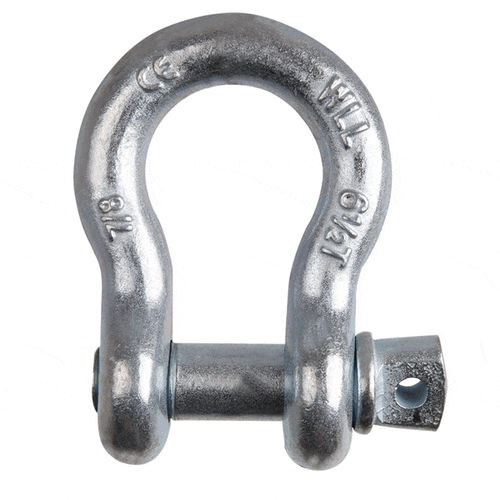

Moving head lifting shackle G209
Add to favorites
Compare this product
Characteristics
- Type
- moving head
- Breaking load
Max.: 85 t
(94 us ton)Min.: 0 t
(0 us ton)
Description
G209 SHACKLE
Short Description:
Capacities 1/3 to 85 tons.
Hot dip galvanized or electric galvanized.
Drop forged, quenched and tempered with alloy pins.
Working load limit permanently shown on every shackle
Max proof load is 2.2 times of the working load limited.
Min. Breaking strength is 6 times or 4 times of the W.L.L. as requirement.
crew pin anchor shackle meet the requirements of federal specification RR-C-271D type 1VA, grade A, class 2
