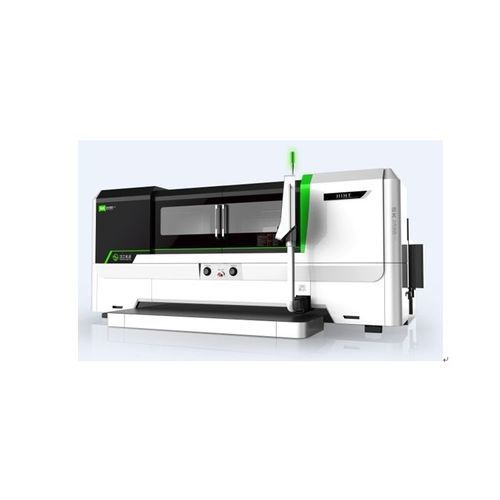

Ball screw grinding machine SK series

CNC5-axis

The machine is mainly used for grinding of screws with Whitworth & Acme thread and ball-screws precisely。 【NC system configuration】 1、Equipped with a SIEMENS 828D CNC system , the machine is controlled with five programmable axes including three synchronous ones。 2、No. of programmable axes Axis Z: Table longitudinal traverse (With grating scale) full close-looped Axis X: Cross-feed of wheelhead Axis C: Rotation of work spindle (With angular encoder) full close-looped Axis V: Vertical feed of dresser slider Axis W: Horizontal feed of dresser slider Out of above NC axes, C-axis and Z-axis are linked to perform thread movement；Wheel dressing is conducted by a formed diamond roller；Two electric hand-wheels can control each NC axis by hand。 【Working accuracy】 1、ball-screws:P2 GB/T17587.3-1998 （ISO3408-3:2006）, measured under dynamic state 2、Acme screws：P6 (JB2886-1992) 【Technical characteristics】 1、Employing a rear-mounted wheel spindle supported by hydro-static bearings，workpiece surface improves greatly。 2、The optimized workhead structure makes work spindle speed double, thus improving machine efficiency greatly。 3、The optimized CNC wheel dresser can dress grinding wheel into various required profiles 4、Oil chiller, high-flow and powerful cooling system and double-filtering system together ensure the temperature influence in grinding process to the minimum。 5、With the intelligent grinding software in man-computer interactive conversation , wheel dressing and grinding can be operated with convenience and accuracy。
