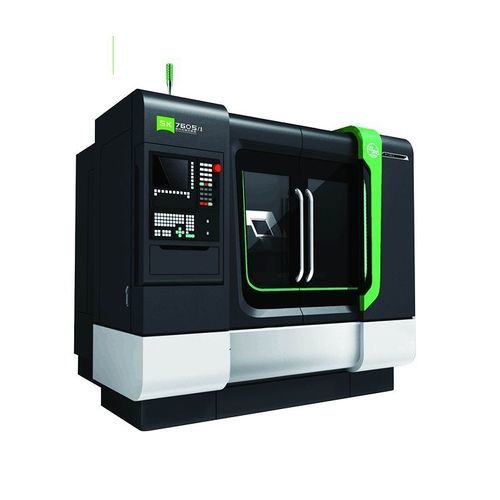

Internal thread grinding machine SK7605/1

CNC3-axis

This machine is mainly designed and made for grinding various cylindrical nuts with gothic thread profiles for batch manufacturing 【NC system configuration】 1、SIEMENS 828D, controlling 3 NC axes 2、CNC axis details Axis Z: Longitudinal table traverse (With grating scale) full close-looped Axis X: Cross feed of wheelhead (With grating scale) full close-looped Axis C: Rotation of work spindle (With circular grating scale) full close-looped 【Working accuracy】 Thread accuracy Limit lead error 0.005mm Accumulative error at a length of 50mm 0.009mm Roughness Ra0.4μm 【Technical characteristics】 1、Employing an E-spindle of high speed for wheel spindle 2、Equipped with a formed diamond roller to conduct wheel dressing 3、Manual or automatic clamping mechanism is for users to select 4、A full-closed housing and an efficient centrifugal oil mist exhauster are
