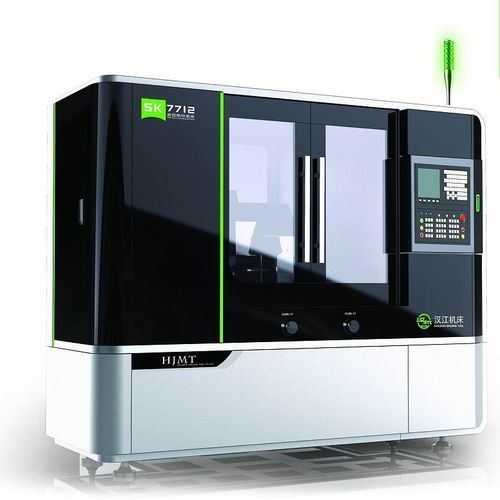

Cylindrical grinding machine SK7712
workpieceCNC4-axis

cylindrical grinding machine
cylindrical grinding machine
cylindrical grinding machine
Add to favorites
Compare this product


Characteristics

Type
cylindrical
Applications
workpiece
Control type
CNC
Number of axes
4-axis
Spindle speed

Min.: 1 rpm
(6 rad.min-1)

Max.: 60 rpm
(377 rad.min-1)

Distance between centers

350 mm
(14 in)

Description

This machine is used to grind various cylindrical worms (ZA, ZN, ZI, ZK, ZC1 profiles)。 【NC system configuration】 No. of programmable axes: four Axis Z: Table longitudinal traverse (With grating scale) full close-looped Axis X: Wheelhead cross feed (With grating scale) full close-looped Axis C: Rotation of work spindle (With angular encoder) full close-looped Axis A: helix angle swivel (With angular encoder) full close-looped 【Working accuracy】 The working accuracy for cylindrical worms(GB): 1、when thread start=1-2 Grade 4 2、when thread start≥3 Grade 5 【Technical characteristics】 1、With a diamond disc, grinding wheel is dressed into required thread profile。 2、Wheel spindle is powered directly by a built-in permanent magnet synchronous motor (PMSM),featured high power and low vibration。 3、The adjustment of helix angle is done and locked automatically by machine soft program, precise and fast。 4、Diamond disc is driven by AC servo motor, ensuring a constant speed and low vibration。 5、With a semi-auto dynamic balancing system, it is convenient to change a new wheel without a need of static balance。 6、With a manual alignment device provided to match the pre-cut workpiece off-line, it is suitable for batch manufacturing。 7、On-line aligning device and automatic loading mechanism are available as optional accessories 8、A full-closed housing and an oil-mist extractor are provided with the machine to improve working environment。
