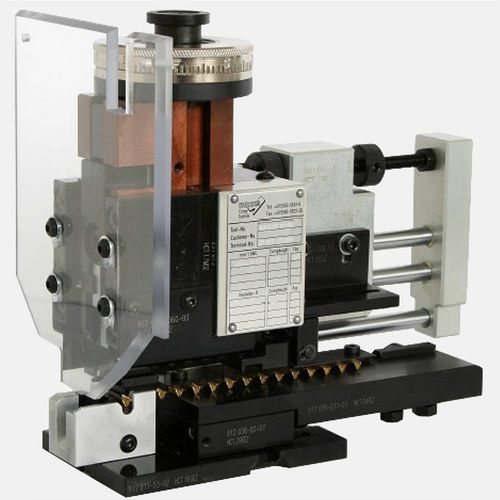

Crimp applicator with end feed for processing end and parallel connectors which are arranged in an angle of 90°.
Technical specifications:
Wire cross-section::
0.35 - 6 mm²
Feed system:
pneumatic, speed adjustable via flow control valve
Feed length:
1 - 40 mm
Closing height at:
135.78 mm
Stroke:
40 - 44 mm
Compressed air connection:
5 - 8 bar
Weight:
4 kg
Dimensions (W x D x H):
90 x 160 x 150 mm
