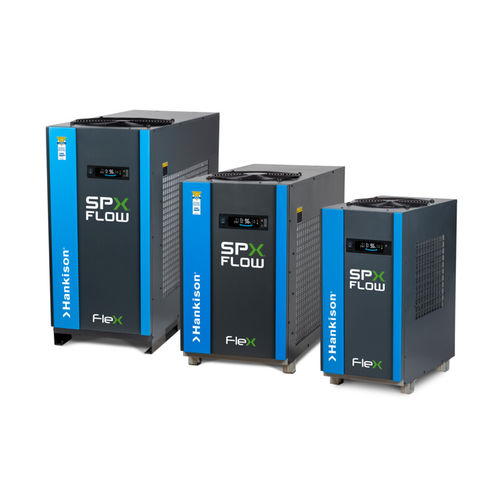

Refrigerated compressed air dryer FLEX series

non-cycling

Energy Saving Sustainability The FLEX Series lowers air system power costs and improves productivity by matching power consumption to compressed air demand. In a typical manufacturing facility, up to 30% of the electricity consumed is for generating and treating compressed air. To reduce the total cost of operation and qualify for utility company incentive programs, proper air treatment equipment selection and application is required. Load Matching Performance Compressed air load profiles in most manufacturing facilities fluctuate. The FLEX Series provides cost-effective energy savings by matching electrical power consumed in direct proportion to air demand. Linear load matching is achieved from 0% up to 100% demand. Non-cycling dryers operate with the refrigeration compressor running continuously, regardless of inlet load conditions. Minimal energy savings are realized from 100% down to 0% inlet air load. The FLEX Series utilizes a phase change (PCM) heat transfer medium between the refrigeration and compressed air circuits that serve as a reservoir for thermal storage. The thermal reservoir is comprised of a 3-in-1 heat exchanger (patent pending)filled with a phase change material that efficiently transfers heat energy through a "change of state."Phase Change: changing from liquid to solid back to liquid in a continuous cycle. The refrigeration circuit operates to cool down the PCM until it forms into a solid at which time the refrigeration system cycles off.
